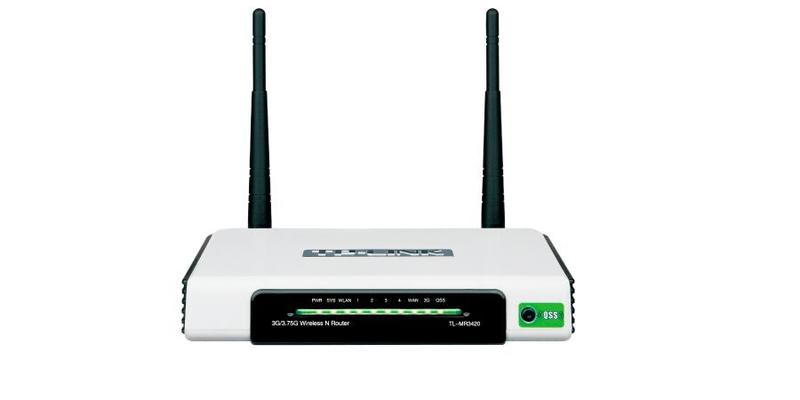

TP-link TL-MR3420 3G/3.75G Wireless N Router

TP-link TL-MR3420 3G/3.75G Wireless N Router

Wifi router med 3G mulighed via USB 3G modem ( Ekstra tilbehør)

Auto "Failover" skifter automatisk til til 3G/WAN forbindelse ved nedbrud.

Compatible with UMTS/HSPA/EVDO USB modems, tested in the field
3G/WAN failover guarantees an 'always-online' Internet connection
Wireless N speed up to 300Mbps
Supports PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable Internet access
SST technology dramatically increases link robustness and stability
CCA technology enhances your signal stablility by automatically avoiding channel conflicts
Wireless security encryption easily at the push of the QSS button
WDS wireless bridge provides seamless bridging to expand your wireless network
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

Software Specification
Standards
IEEE 802.11n/g/b, IEEE 802.3/3u, USB 2.0
Wireless Signal Rates With Automatic Fallback
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Frequency Range
2.4-2.4835GHz
Wireless Transmit Power (MAX)
20dBm(Max. EIRP)
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiver Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Hardware Specification
Interface
USB 2.0 Port for UMTS/HSPA/EVDO USB Modem
1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX
Antenna
3dBi Detachable Omni Directional Antenna X 2
Power Supply Unit
Input: Localized to Country of Sale
Output: 9VDC / 0.85A Switching PSU
Operating temperature
0°C~40°C (32℉~104℉)
Storage temperature
-40°C~70°C (-40℉~158℉)
Relative humidity
10% ~ 90%, Non Condensation
Storage Humidity
5%~95% Non-Condensing
Dimensions
6.9 x 4.4 x 1.2 in. (174 x 111 x 30 mm)
HUSK at PIN kode på SIM kortet skal deaktiveres for at få dit USB modem til at tilslutte, (gøres via din PC.)

Find kompatibilitetsliste og software her
